Quick Details

  • Type: Whiteboard
  • Whiteboard Type: Interactive Whiteboard
  • Folded: No
  • Brand Name: Moly Board
  • Model Number: IO-8083
  • Place of Origin: Beijing, China (Mainland)
  • OEM: available
  • Warranty: 3 years
  • Certificate: CE/FCC/ROHS/ISO9001/ISO14001
  • cursor speed: 180 points/second
  • frame:: silver-aluminum
  • Minimum touch object:5mm: Process rate:12 m/second
  • Name: Optical Interactive whiteboard CCD
  • Shortcut keys: 16 shortcut keys
  • Size: Customized
  • Application: School Teaching

Packaging & Delivery

Packaging Details carton package
Delivery Time Shipped in 7 days after payment



MOLYBoard 4 cameras Optical Interactive whiteboard CCDinteractive whiteboard



Optical Interactive whiteboard CCD           MOLYBoard Interactive whiteboard        4 cameras Interactive whiteboard

Technology Principle:

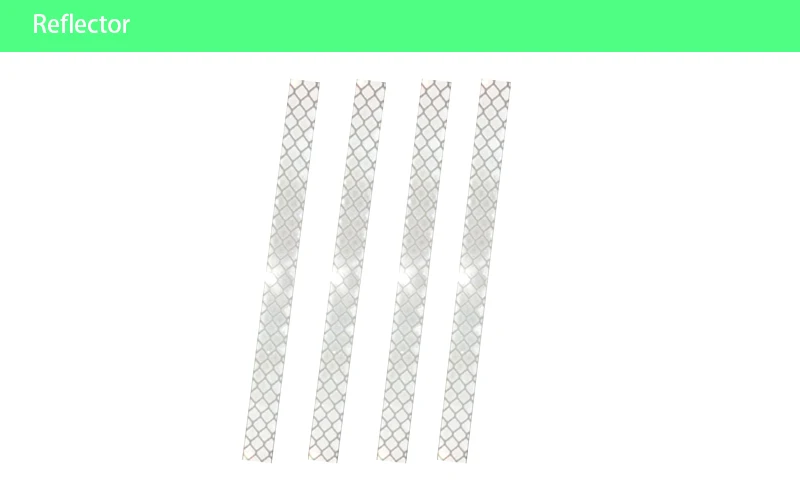

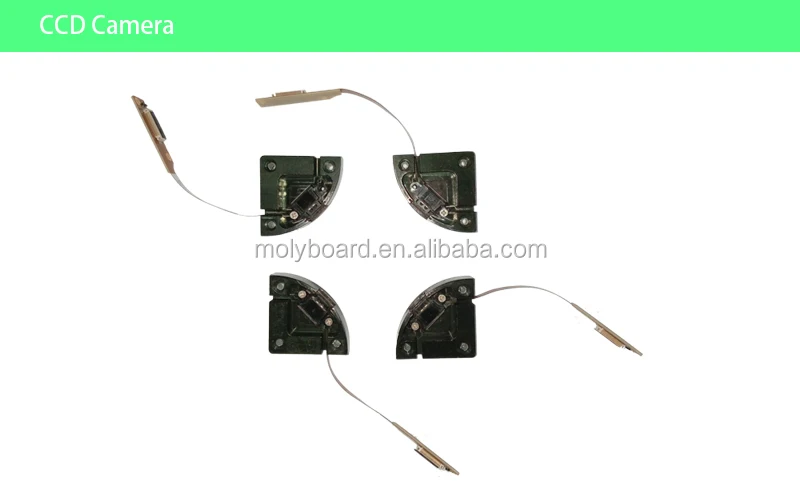

 Working together, four optical sensors track the movement of any object close to the surface by detecting the interruption of an infra-red light source. The light is emitted in a plane across the surface of the screen and can be either active (infra-red LED) or passive (special reflective surfaces).



At the heart of the system is a printed circuit controller board that receives signals from the optical sensors. Its software then compensates for optical distortions and triangulates the position of the touching object with extreme accuracy.

By using optical sensors at four corners of the screen, Optical Touch “sees” the touching object from four angles. The result is a high degree of accuracy, with no contact pressure required. No special coatings and films are needed—there’s nothing to scratch, wear out, or cloud the display image. The screen can be sealed against dirt, dust, and moisture, ideal for heavily used kiosks in public areas.

Features:

  1. Multi-touch is capable. Optical Touch accommodates multiple touch points with a high degree of precision.
  2. The infrared board can be used as traditional whiteboards in that they have a hard surface and can be drawn on with normal pens.
  3.  You can touch the screen anywhere, with anything—a finger, a pen, a credit card. Even the lightest touch will be registered. Annotations are fast and precise.



Finished product
